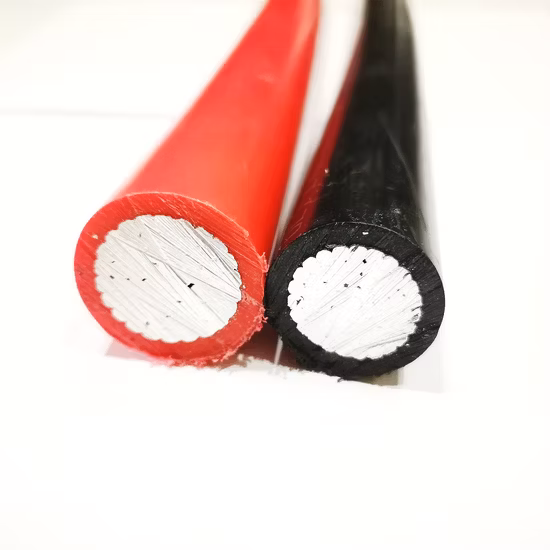

Photovoltaic Factory Price UL4703 Standard PV Cable Solar Power System Wire DC Panel Extension Connector

Basic Info

Model NO.	PV cable
Wire Core Material	Tinned Wire
Certification	ISO, CCC, RoHS, TUV
Model	PV1-F
Brand	Rneda
Standard	TUV 2pfg 1169/08.07
Rated Voltage	AC 0.6/1kv;DC 1.8kv
Ambient Temperature	-40~90 Degree
Flame Test	IEC 60332-1
Manufacturer Experience	Since 1993
Installed Condition	Solar System, Solar Power Station
Color	Red, Black or as Your Requirement
Approvals	TUV
Type	Solar PV Cable
RoHS	Yes
Transport Package	Coil, Roll, Reel or Customer Requirement
Specification	2.5MM2, 4MM2, 6MM2
Trademark	RENDA
Origin	Tangshan. Hebei. China
HS Code	8544492100
Production Capacity	10000000FT/Month

Product Description

Professional OEM manufacturerTop ten cable manufactuer in ChinaLeading ESP cable manufacture , largest Rubber cable manufacturer in China.With UL,TUV,KEMA,CE,BV,PSB,SABA certificationsWith TUV TYPE TESTING REPORTWith ISO9001,ISO18001,OHSAS18001 syetem certifications

The factory price UL4703 standard PV Solar Cable 4mm2 / 6mm2 / 10mm2 / 16mm2 / 25mm2 For Solar Power System cable

Solar Cable

ApplicationDouble insulation, electron-beam cross-linked cables for photovoltaic power station.

Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment

ConstructionConductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5Insulation: Polyolefin copolymer electron-beam cross-linkedOuter Sheath: Polyolefin copolymer electron-beam cross-linkedSheath color: Black/Red/Blue or as per customer's requeitTechnical SpecificationNominal Votage: U0/U=600/1000VAC,1000/1800VDCTest Voltage: 6500V,50Hz,5minTemperature Rating:-45ºC ~ +125ºC-40°F ~ +257°FAmbient temperature-40ºC ~ +90ºC-40°F ~+194°FMax. Short circuit temperature:280ºC,+536°FBending Radius: Fixed installation>4X, Occasionally moved>5XMaterial Properties/ StandardsFire-resistance performance: IEC 60332-1Smoke emission: IEC 61034; EN 50268-2Low fire load: DIN 51900Approvals: TUV 2PfG 1169/08.2007 PV1-FApplication standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502

	Conductor Construction	Conductor ø	Outer ø	Resistance Max.	Current Carring Capacity
n×mm²	n/m	mm	mm	Ω/Km	A
1×1.5	30/0.25	1.58	4.9	13.3	30
1×2.5	50/0.25	2.02	5.45	7.98	41
1×4.0	56/0.3	2.30	6.1	4.75	55
1×6.0	84/0.30	3.42	7.2	3.39	70
1×10.0	142/0.30	4.56	9	1.95	98
1×16.0	228/0.30	5.60	10.2	1.24	132
1×25.0	361/0.30	6.95	12	0.795	176
1×35.0	525/0.30	8.74	13.8	0.565	218
1×50.0	720/0.30	9.20	14.8	0.393	280
1×70.0	988/0.30	11.00	16.9	0.277	350
1×95.0	1349/0.30	12.50	18.7	0.21	410
1×120	1691/0.30	14.20	20.7	0.164	480

Photovoltaic Factory Price UL4703 Standard PV Cable Solar Power System Wire DC Panel Extension Connector

HeBei Huatong Wires&Cables Group Co.,ltd.
was established in 1993.Hebei Huatong Wires and Cables Group covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.

We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

.
